Additive & Hot Oil Pumps
F003–F30 · Vertical F-Series Pumps

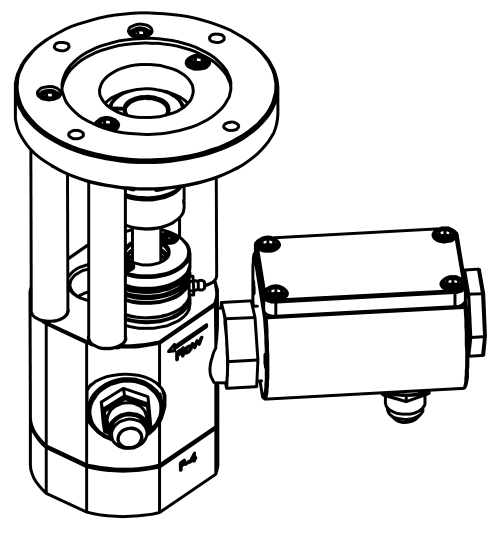

F003–F04 assembly shown.
Built for vertical service.
Seven sizes. A vertical arrangement.
The F-Series pairs a positive-displacement pump with an integral screen box for additive and hot oil applications.
The shaft stands vertically, with the displacement body below the ports and the screen box beside the pump.
F003 · F008 · F02 · F04 · F07 · F15 · F30
Liquid at the gears
The screen box and upward discharge retain a liquid charge at the gears between cycles, including when reversing.
A path for air
The upright displacement section lets air rise toward the discharge.
A wetted seal
The vertical seal chamber retains lubricant above the primary seal.
The F003–F30 Range
| Pump model | Reference Flow GPM at 1,200 RPM |
|---|---|
| F003 | 0.3 |
| F008 | 0.9 |
| F02 | 2.3 |
| F04 | 4.6 |
| F07 | 8.4 |
| F15 | 18.0 |
| F30 | 36.0 |
Maximum pump speed: 1,200 RPM. Delivered flow depends on viscosity, differential pressure, inlet conditions and internal slip.
